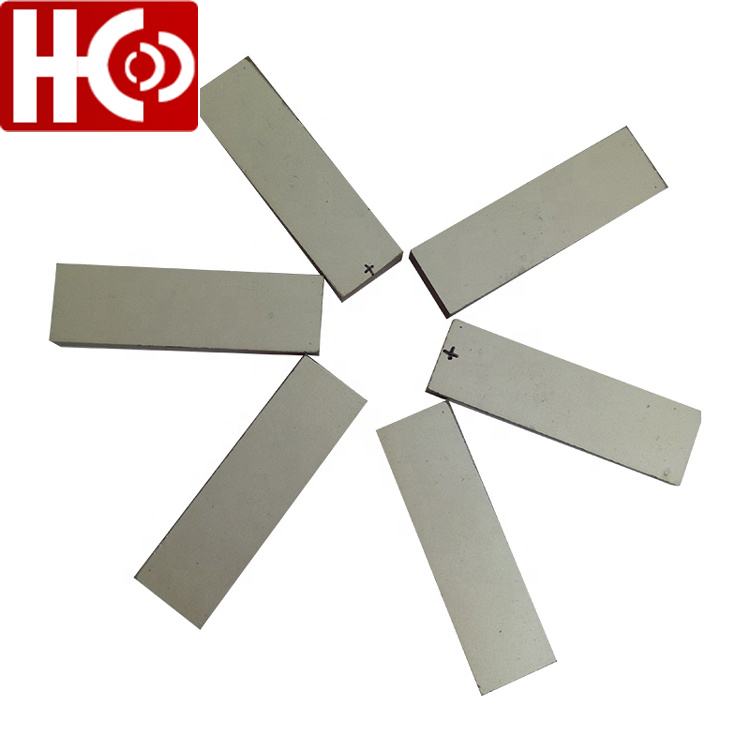

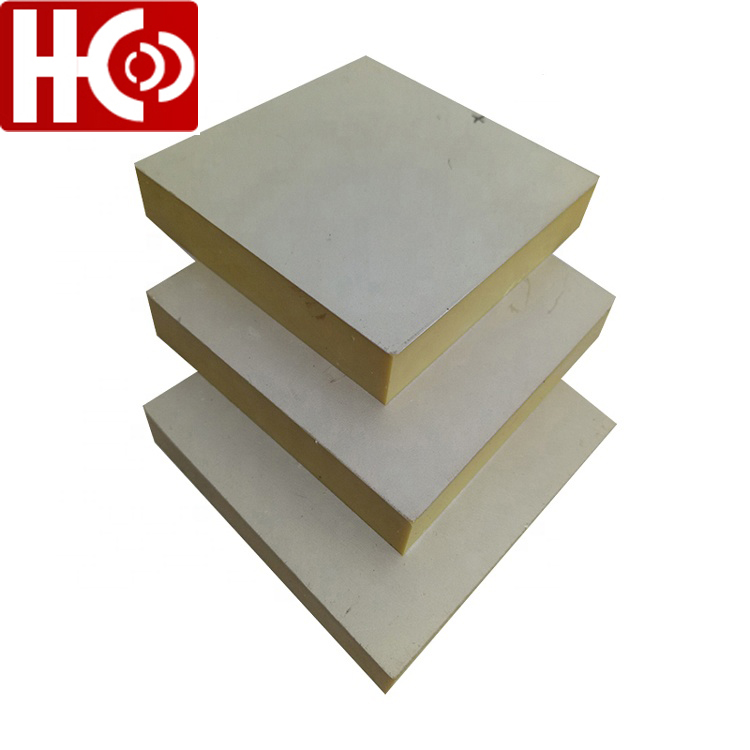

Ultrasonic Rectangle Piezo Element Series
HC
Size (Length*Width*Height) (MM) | Piezoelectric Strain Constant d33(10-12C/N) | Capacitance CT(nF) | Relative Dielectric Constant εTr3 | Resonant Frequency Fs (kHz) | Coupling Coefficient K31(%) |
105*14*0.37 | 420 | 81 | 2300 | 13.6 | 37.0 |
66.5*14*0.49 | 550 | 55 | 3400 | 21.5 | 37.2 |
63.5*14.3*0.42 | 550 | 49 | 3400 | 22.5 | 32.9 |
90*9*0.18 | 550 | 135 | 3400 | 15.9 | 38.0 |
70*14.5*0.32 | 550 | 89 | 3400 | 20.4 | 36.7 |
65*14.5*0.4 | 550 | 62 | 3400 | 22.0 | 35.6 |
130*15.8*0.53 | 600 | 154 | 3400 | 11.0 | 37.0 |
45*9*0.2 | 620 | 63 | 5300 | 31.1 | 30.2 |
12*12*1 | 420 | 2.3 | 2300 | 17.1 | 65.0(kp) |
13*13*0.56 | 280 | 1.68 | 800 | 15.4 | 60.0(kp) |
25*10*0.7 | 420 | 5 | 1600 | 56.0 | 60.0(kp) |
30*30*1 | 420 | 10 | 1600 | 66.7 | 60.0(kp) |
Dimension(mm) Length*Width*Thickness | Frequency | Capacitance | Dielectric loss | Piezoelectric voltage coefficient | Courier Temperature |
25×4×0.5 | 58 | 5800 | ≤2.0 | 550× | 180 |
40×4×0.5 | 38 | 7900 | ≤2.0 | 550× | 180 |
25×4×0.5 | 58 | 4800 | ≤2.0 | 400× | 260 |
40×4×0.5 | 38 | 6500 | ≤2.0 | 400× | 260 |
25×4×0.5 | 58 | 3100 | ≤2.0 | 280× | 350 |
40×4×0.5 | 38 | 5500 | ≤2.0 | 280× | 350 |
Size (Length*Width*Height) (MM) | Piezoelectric Strain Constant d33(10-12C/N) | Capacitance CT(nF) | Relative Dielectric Constant εTr3 | Resonant Frequency Fs (kHz) | Coupling Coefficient K31(%) |
105*14*0.37 | 420 | 81 | 2300 | 13.6 | 37.0 |
66.5*14*0.49 | 550 | 55 | 3400 | 21.5 | 37.2 |
63.5*14.3*0.42 | 550 | 49 | 3400 | 22.5 | 32.9 |
90*9*0.18 | 550 | 135 | 3400 | 15.9 | 38.0 |
70*14.5*0.32 | 550 | 89 | 3400 | 20.4 | 36.7 |
65*14.5*0.4 | 550 | 62 | 3400 | 22.0 | 35.6 |
130*15.8*0.53 | 600 | 154 | 3400 | 11.0 | 37.0 |
45*9*0.2 | 620 | 63 | 5300 | 31.1 | 30.2 |
12*12*1 | 420 | 2.3 | 2300 | 17.1 | 65.0(kp) |
13*13*0.56 | 280 | 1.68 | 800 | 15.4 | 60.0(kp) |
25*10*0.7 | 420 | 5 | 1600 | 56.0 | 60.0(kp) |
30*30*1 | 420 | 10 | 1600 | 66.7 | 60.0(kp) |
Dimension(mm) Length*Width*Thickness | Frequency | Capacitance | Dielectric loss | Piezoelectric voltage coefficient | Courier Temperature |
25×4×0.5 | 58 | 5800 | ≤2.0 | 550× | 180 |
40×4×0.5 | 38 | 7900 | ≤2.0 | 550× | 180 |
25×4×0.5 | 58 | 4800 | ≤2.0 | 400× | 260 |
40×4×0.5 | 38 | 6500 | ≤2.0 | 400× | 260 |
25×4×0.5 | 58 | 3100 | ≤2.0 | 280× | 350 |
40×4×0.5 | 38 | 5500 | ≤2.0 | 280× | 350 |
