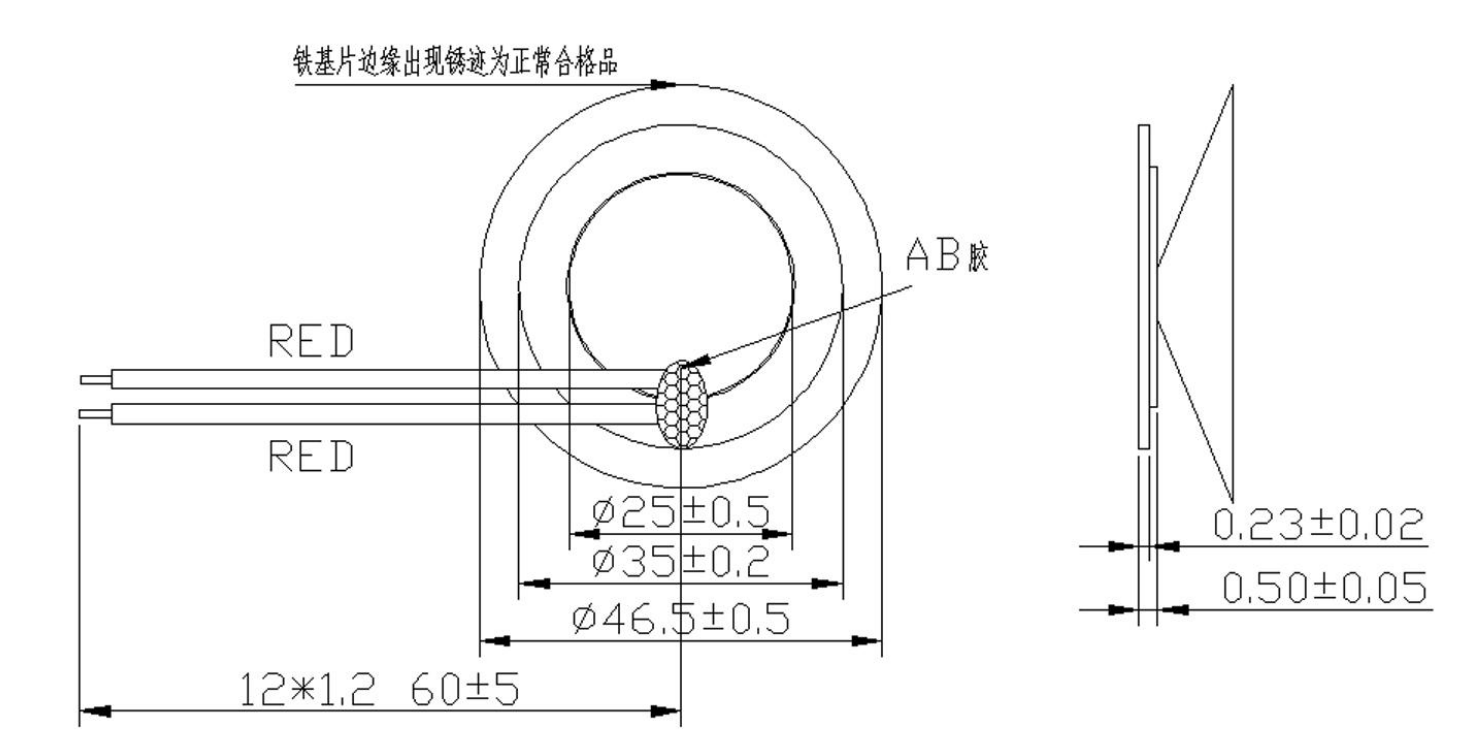

35mm 2800hz piezo ceramic element with pvc film

  • FT-35T-2.8A1-PVC46.5

  • HC

  • Type: Piezoelectric Ceramic element
  • Product name: High quality 35mm piezo disc
  • Resonant Frequency (KHz): 2.8±0.5
  • Resonant Impedance (Ω): 500max
  • Capacitance at100Hz(pF): 38000±30%
  • Metal Material: stainless steel
  • Application: be used for piezo siren
  • Size: Dia 46.5mm
Availability:
Inquire

PVC2
Model No.
FT-35T-2.8A1-PVC46.5
Resonant Frequency (KHz)
2.8±0.5
Resonant Impedance (Ω)
500max
Capacitance at100Hz(pF)
38000±30%
Coaxial degree (mm)
0.6
Insulation Resistance(MΩ)
≥100 （at 50V DC）
Operating Temperature (℃)
-20~+60
Storage Temperature (℃)
-30~+60
Metal Material
Stainless steel
