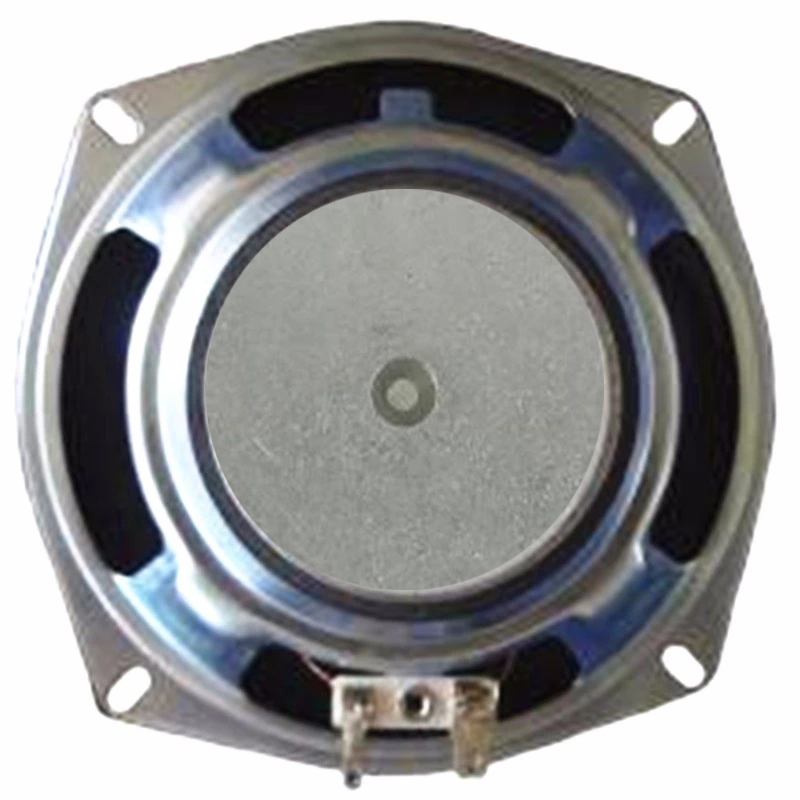

5.5 inch 8ohm 20w car door speaker

  • HC135W-4-R8
  • HC
  • Product name: 5.5 inch midrange loudspeaker
  • Rate power: 20Watt
  • Max power: 25Watt
  • Sensitivity: 94±3dB
  • Impedance: 4/8/16Ω Provide customized services
  • Frequency: Fo~~12KHZ
  • Resonance frequency: 90hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 60*32*10mm
  • Size: 134*134*46Hmm
Quantity:
135mm raw speaker driver 5.5 inch 8ohm 20w car radio speaker
Attribute
Value
1.1 Rate power
20 W
1.2 Max power
25 W
1.3 Sensitivity
94±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
8Ω±15%
1.5 Frequency
Fo~~8KHZ
1.6Resonance frequency
250hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ60*32*10mm
1.9 Weight
280g±8%
2.0 Size
134*134*46Hmm
2.1voice coil & Material
Φ19.45 ASV+Cu
2.2 Cone
Paper
