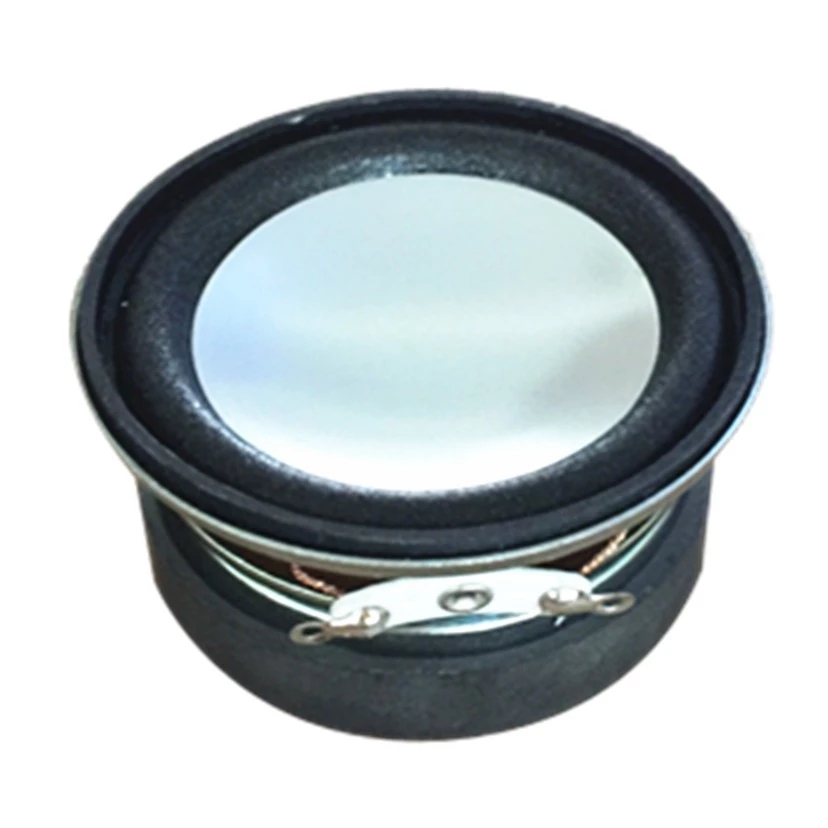

2 inch 4OHM 5W music speaker

  • HC50W-19-R4
  • HC
  • Product name: 2 inch full range loudspeaker woofer
  • Rate power: 3 Watt
  • Max power: 5 Watt
  • Sensitivity: 87±3dB
  • Impedance: 4/8/16Ω Provide customized services
  • Frequency: Fo~~18KHZ
  • Resonance frequency: 190hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 45*22*8mm
  • Size: 50*25.5Hmm
Quantity:
2 inch music speaker driver 50mm 4ohm 5w raw speaker
Attribute
Value
1.1 Rate power
3 W
1.2 Max power
5 W
1.3 Sensitivity
87±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
4Ω±15%
1.5 Frequency
Fo~~18KHZ
1.6Resonance frequency
190hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ45*22*8mm
1.9 Weight
102g±8%
2.0 Size
50*25.5Hmm
2.1voice coil & Material
Φ13.28mm KSV+Cu
2.2 Cone
Paper cone with foam edge
