HC-32T-3.0AS1
HC

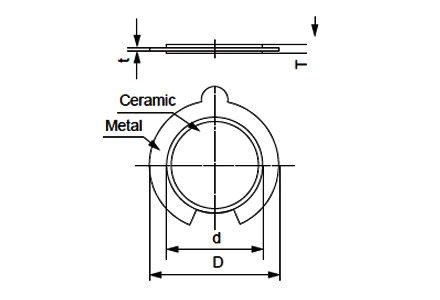

32mm piezo bimorph element 3000Hz piezo disc drawing and parameters
Structure and Application Field of Piezoelectric Sensors / piezoelectric ceramic disc / piezo plate
Structure:
Piezoelectric sensors are typically composed of a piezoelectric material (such as quartz, PZT, or PVDF) sandwiched between two electrodes. When mechanical stress or vibration is applied, the piezoelectric material generates an electrical charge proportional to the applied force. The basic structure includes:
1. Piezoelectric Element: The core component that converts mechanical energy into electrical signals.
2. Electrodes: Conductive layers on both sides of the piezoelectric material to collect the generated charge.
3. Protective Layer: Encases the sensor to protect it from environmental factors like moisture or physical damage.
4. Signal Conditioning Circuit: Often integrated to amplify and process the weak electrical signals.
Application Fields:
1. Industrial Automation: Used for vibration monitoring, pressure sensing, and impact detection in machinery.
2. Medical Devices: Employed in ultrasound imaging, blood pressure monitors, and wearable health sensors.
3. Consumer Electronics: Integrated into touchscreens, microphones, and haptic feedback systems.
4. Aerospace: Utilized for structural health monitoring and vibration analysis in aircraft and spacecraft.
5. Energy Harvesting: Convert ambient vibrations into electrical energy for low-power devices.
Piezoelectric sensors are valued for their high sensitivity, fast response, and durability, making them indispensable in modern technology. The most conventional applications are the production of piezoelectric buzzers, alarms, piezoelectric speakers, pickups for electric guitars, pressure sensors, touch switches... These are the cases we have touched on, there are still many uncharted territories to be explored. If you have a new idea you can contact us and we will assist with customisation and development.
Lear more about Hongchang(changzhou) electronic co., Ltd
Hongchang(changzhou) Electronic Co., Ltd established in 1997 and have more than 25years produce experience. It covers an area of 9,000 square meters and a building area of 11,000 square meters.
Our main products are Speaker unit, buzzer, piezo element, ultrasonic sensor and audio jammer.
Speaker: mylar speaker, audio speaker, car speaker, TV speaker, woofer speaker, waterproof speaker, speaker driver
Buzzer: piezo buzzer, piezo transducer, magnetic buzzer, magnetic transducer, mechanical buzzer, SMD type
Ultrasonic sensor: 25Khz ultrasonic sensor, 30Khz ultrasonic sensor, 40Khz ultrasonic sensor
Piezo element: Size from 10mm-50mm
Now we have more than 200 staffs, especially including 18 acoustic engineers, provide products customization service, offer free sample for test.
we are focus on product innovation , Management innovation. The quality of product wasrecognized by customer from all over the world.
