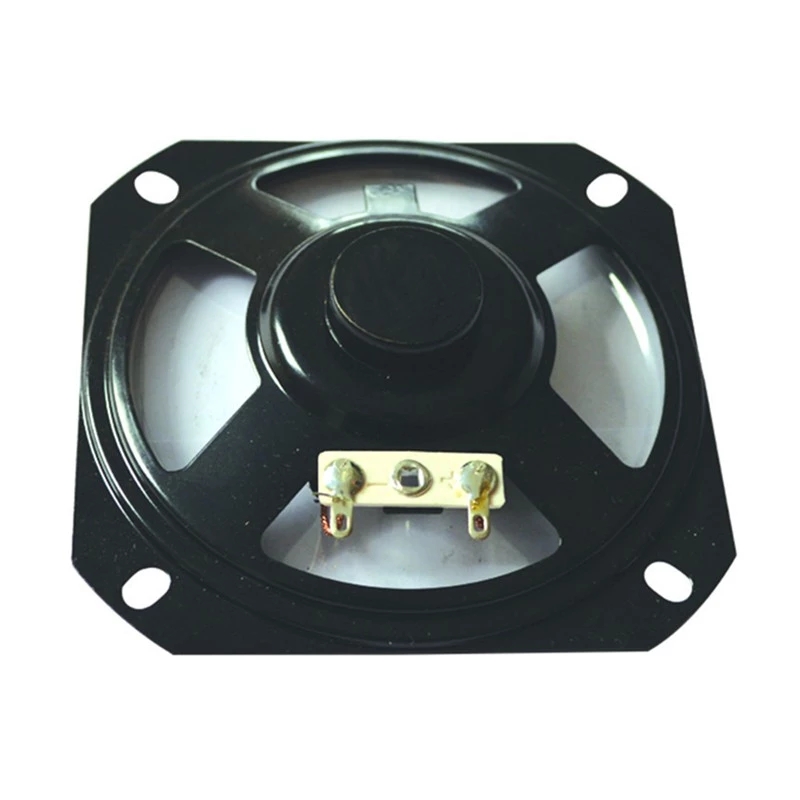

3.5 inch 92mm 8 ohm 4 watt speaker

  • HC92N-2F -R8
  • HC
  • Product name: 93 mm IP65 full range waterproof speaker driver unit
  • Rate power: 3 Watt
  • Max power: 4 Watt
  • Sensitivity: 90±3dB
  • Impedance: 8 ohm Provide customized services
  • Frequency: Fo~~10KHZ
  • Resonance frequency: 300 hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 12.5*2.0 mm
  • Size: 93*93*22.5mm
Quantity:
professional multimedia speaker 3.5 inch 8 ohm 4 watt multimedia speaker
Attribute
Value
1.1 Rate power
3 W
1.2 Max power
4 W
1.3 Sensitivity
90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
8Ω±15%
1.5 Frequency
Fo~~10KHZ
1.6Resonance frequency
300hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ12.5*2.0mm
1.9 Weight
45g±8%
2.0 Size
93*93*22.5Hmm
2.1voice coil & Material
Φ13.28mm PL+Cu
2.2 Cone
PET
