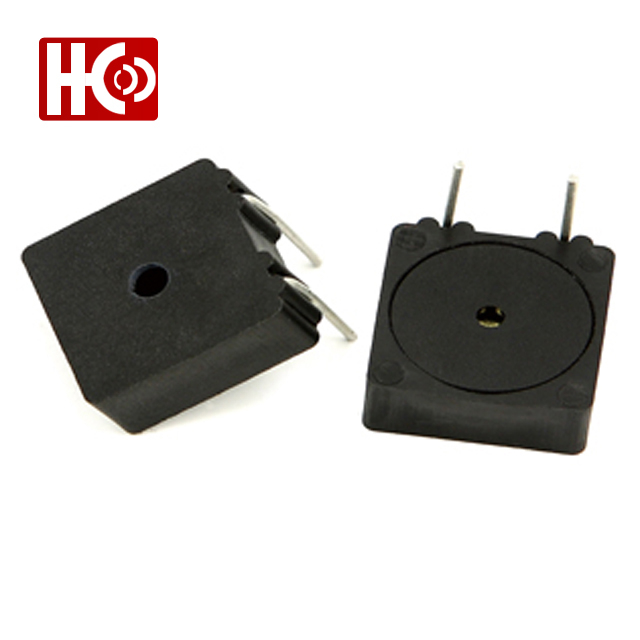

25MM*25MM*8.5MM 12V 80dB low frequency micro passive piezo buzzer

  • HPT2580L-TB-12-0.4-23-F
  • HC
  • Product name: 25mm square alarm piezo buzzer
  • Application: car buzzer
  • Rated Voltage (Vp-p): 12V
  • Operating Voltage (Vp-p): 3-40V
  • Resonant Frequency (Hz): 400
  • Capacitance at120Hz (PF): 23000±30%
  • Sound Output at 10cm (dB): ≥79
  • Current Consumption (mA): ≤3
Quantity:
25MM*25MM*8.5MM 12V 80dB low frequency micro passive alarm piezo buzzer
Model
HPT2580L-TB-12-0.4-23-F
Rated Voltage (Vp-p)
12
Operating Voltage (Vp-p)
3~40
Resonant Frequency (Hz)
400
Current Consumption (mA)
≤3
Sound Output at 10cm (dB)
≥79
Capacitance at120Hz (PF)
23000±30%
Operating Temperature (℃)
-20~+60
Storage Temperature (℃)
-30~+70
Weight (g)
1
RoHs
Yes
