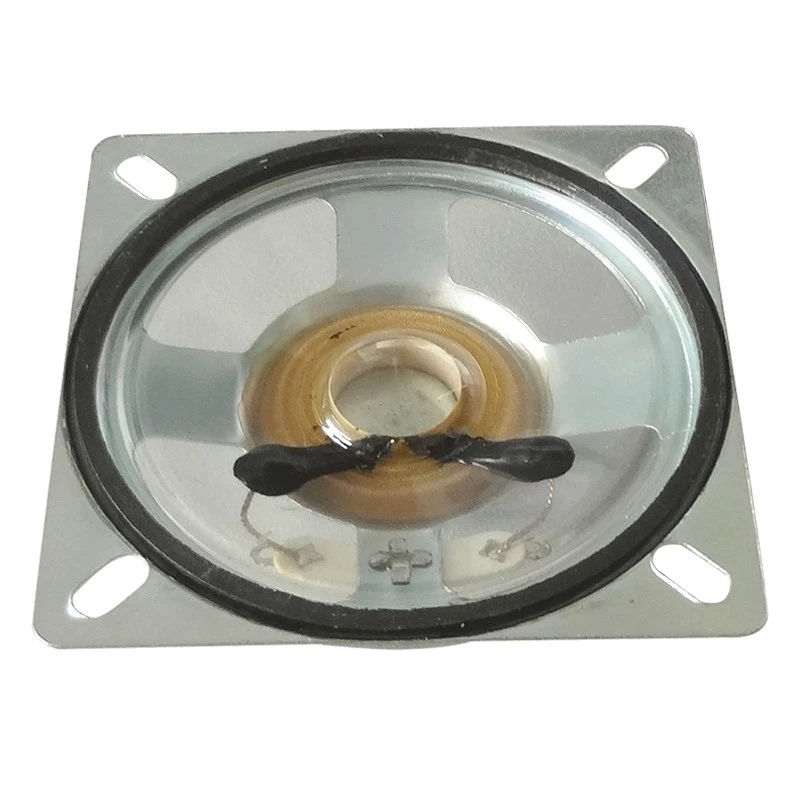

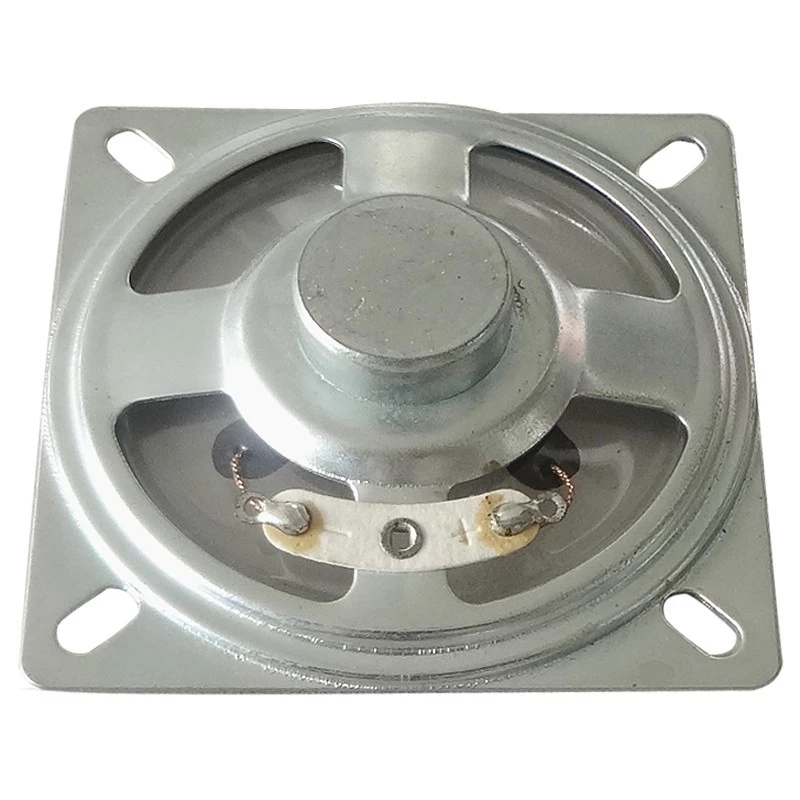

2.5" 8ohm 3w outdoor water resistant IP65 speaker

  • HC66N-8F-R8
  • HC
  • Product name: 66mm 8ohm 3w waterproof raw speaker unit
  • Rate power: 2Watt
  • Max power: 3Watt
  • Sensitivity: 92±3dB
  • Impedance: 4/8/16Ω Provide customized services
  • Frequency: Fo~~5KHZ
  • Resonance frequency: 500hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 12.5*2.0MM
  • Size: 66*66*15Hmm
Quantity:
66x66mm 2.5" 8ohm 3w outdoor water resistant IP65 electronic speaker driver
Attribute
Value
1.1 Rate power
2 W
1.2 Max power
3 W
1.3 Sensitivity
92±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
8Ω±15%
1.5 Frequency
Fo~~5KHZ
1.6Resonance frequency
550hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ12.5*2.0MM
1.9 Weight
27g±8%
2.0 Size
66*66*15Hmm
2.1voice coil & Material
Φ13.28mm PL+Cu
2.2 Cone
PET
