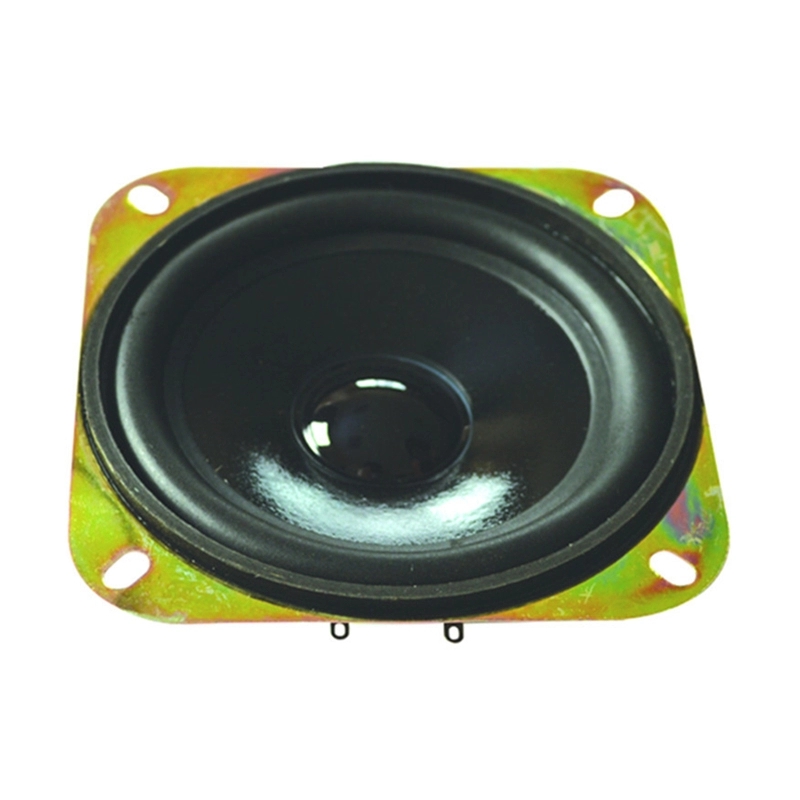

102x102mm 10 watt 4 ohm car audio speaker

  • HC102T-7-R4
  • HC
  • Product name: 4 inch full range raw speaker
  • Rate power: 10 Watt
  • Max power: 11 Watt
  • Sensitivity: 89±3dB
  • Impedance: 4/8/16Ω Provide customized services
  • Frequency: Fo~~15KHZ
  • Resonance frequency: 120±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 40*19*8mm 32*18*6mm
  • Size: 102*102*43mm
Quantity:
4 inch auto speaker driver unit 102x102mm 10 watt 4 ohm for car audio
Attribute
Value
1.1 Rate power
10 W
1.2 Max power
11 W
1.3 Sensitivity
89±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
4Ω±15%
1.5 Frequency
Fo~~15KHZ
1.6Resonance frequency
120±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ40*19*8mm;Φ32*18*6mm
1.9 Weight
160g±8%
2.0 Size
102*102*43Hmm
2.1voice coil & Material
14.28mm ASV+Cu
2.2 Cone
Paper cone with foam edge
