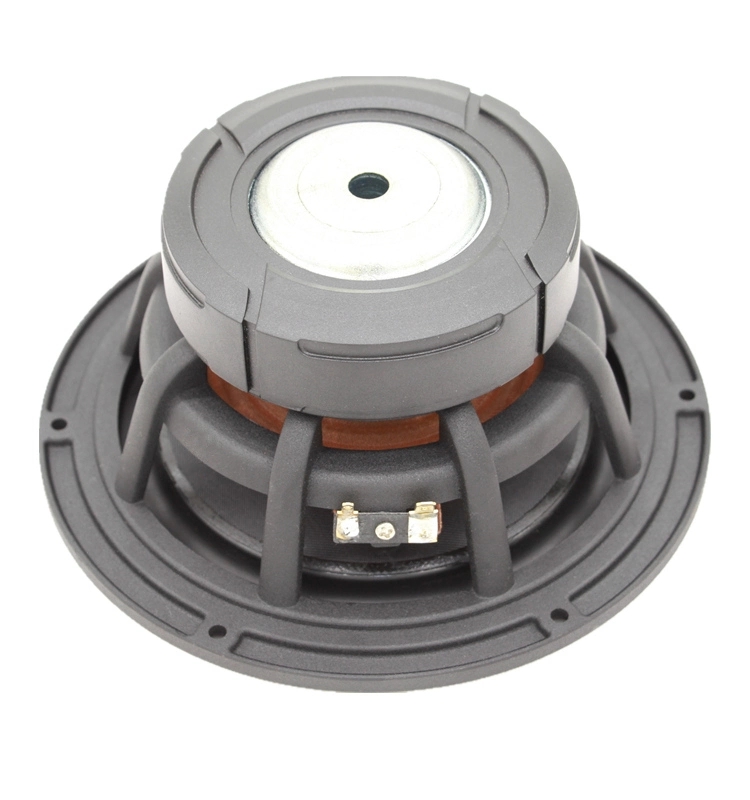

7 inch 80w 4ohm speaker

  • YD71
  • HC
  • Product name: 7 inch stereo speaker driver unit
  • Rate power: 80 Watt
  • Max power: 150 Watt
  • Sensitivity: 92±3dB
  • Impedance: 4/8 ohm Provide customized services
  • Frequency: Fo~~8KHZ
  • Resonance frequency: 56 hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 100x15mm 17oz
  • Size: 7" (179MM)
Quantity:

7 inch 179mm 80w 4ohm multimedia speaker and home theatre bass speaker

Attribute
Value
1.1 Rate power
80 W
1.2 Max power
150 W
1.3 Sensitivity
92±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
4/8Ω±15%
1.5 Frequency
Fo~~8KHZ
1.6Resonance frequency
56 hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Dia 100x15mm 17oz
1.9 Weight
1.54Kg±8%
2.0 Size
7"(179MM)
2.1voice coil & Material
1.38"/35MM
