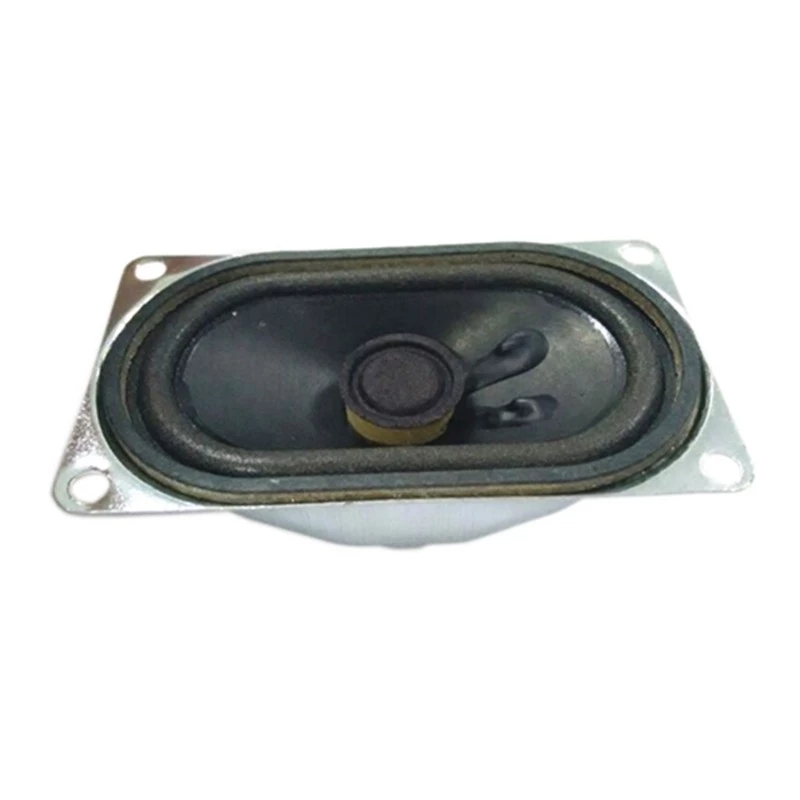

41x71mm 4ohm 5w mini LCD TV speaker

  • HC4070N-4-R4
  • HC
  • Product name: rectangular TV raw speaker driver
  • Rate power: 5 Watt
  • Max power: 6 Watt
  • Sensitivity: 83±3dB
  • Impedance: 4Ω Provide customized services
  • Frequency: Fo~~15KHZ
  • Resonance frequency: 320hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 12.5*3mm
  • Size: 40*70*27 mm
Quantity:
cheap price loudspeaker unit 41x71mm 4ohm 5w mini LCD TV speaker
Attribute
Value
1.1 Rate power
5 W
1.2 Max power
6 W
1.3 Sensitivity
83±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
4Ω±15%
1.5 Frequency
Fo~~15KHZ
1.6Resonance frequency
320hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ12.5*3mm
1.9 Weight
40g±8%
2.0 Size
40*70*27Hmm
2.1voice coil & Material
Φ13.28mm KSV+Cu
2.2 Cone
Paper cone with foam edge
