You are here: Home » Speaker » Equipment speaker » 3.5 inch speaker driver unit
Share to:

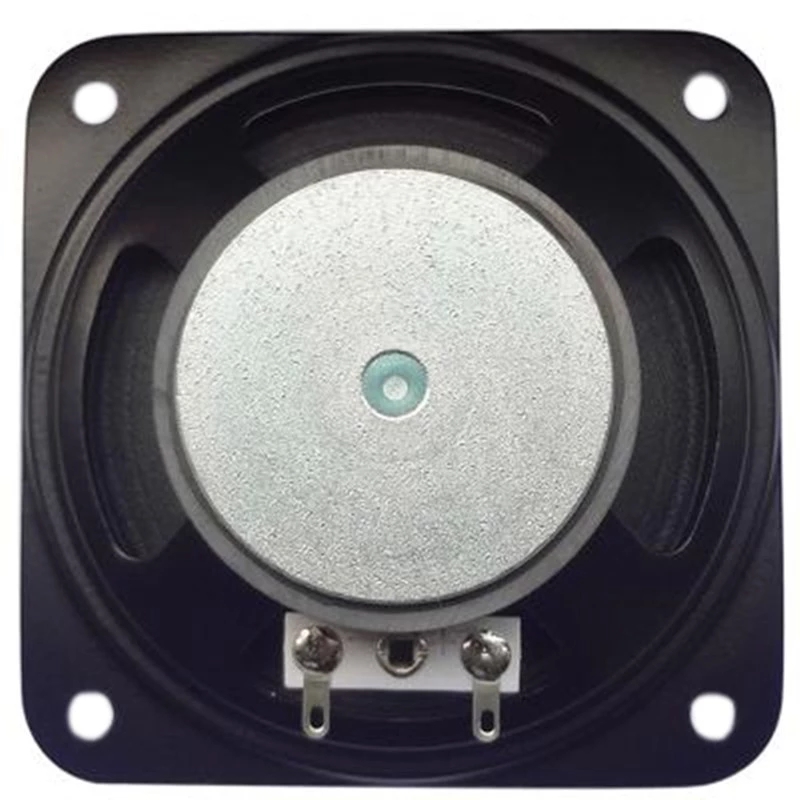

3.5 inch speaker driver unit

  • HC87W-18-R8
  • HC
  • Product name: 3.5 inch raw speaker driver unit
  • Rate power: 4 Watt
  • Max power: 8 Watt
  • Sensitivity: 92±3dB
  • Impedance: 4/8/16Ω Provide customized services
  • Frequency: Fo~~10KHZ
  • Resonance frequency: 220±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 50*24*8mm
  • Size: 87*87*29Hmm
Quantity:
3.5 inch speaker driver unit with mounting hole 87mm loudspeaker drivers

Attribute
Value
1.1 Rate power
4 W
1.2 Max power
8 W
1.3 Sensitivity
92±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
8Ω±15%
1.5 Frequency
Fo~~10KHZ
1.6Resonance frequency
220±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ50*24*8mm
1.9 Weight
150g±8%
2.0 Size
87*87*29Hmm
2.1voice coil & Material
Φ13.28mm PSV+Cu
2.2 Cone
Paper cone
