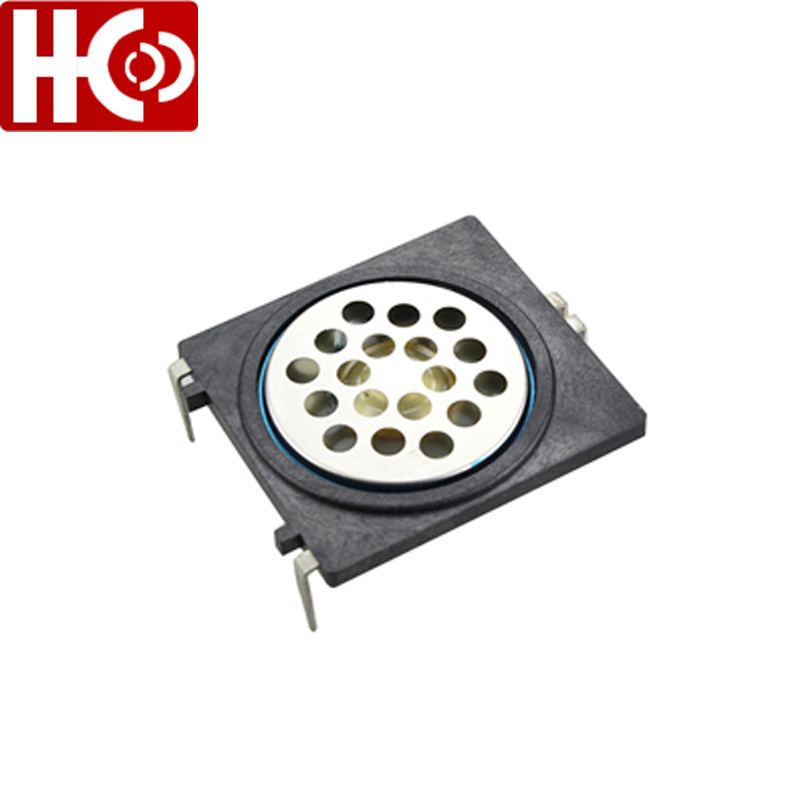

16 ohm 1 watt ultrathin speaker

  • HC36065-R16W0.5-J-210
  • HC
  • Product name: PCB mount speaker
  • Rate power: O.5 Watt
  • Max power: 1 Watt
  • Sensitivity: 92dB(0.1W/0.1m) ± 3 dB at AVE 0.8K 1.0K 1.2K 1.5K Hz
  • Impedance: 16Ω ± 15%
  • Frequency: Fo~~10KHZ
  • Resonance frequency: 600±20%
  • Distortion rate: ≤5%
Quantity:
16 ohm 1 watt ultrathin speaker


Attribute
Value
1.1 Rate power
0.5 W
1.2 Max power
1.0 W
1.3 Sensitivity
92dB(0.1W/0.1m) ± 3 dB at AVE 0.8K 1.0K 1.2K 1.5K Hz
1.4 Impedance
16Ω ± 15%
1.5 Frequency
Fo~~10000HZ
1.6Resonance frequency
600±20%
