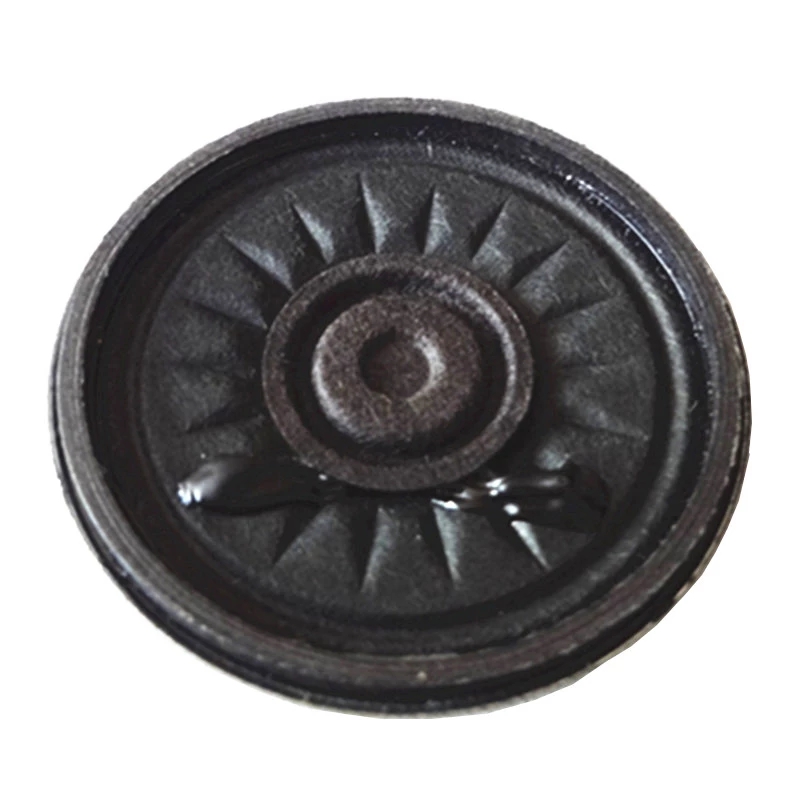

40mm 0.5w 32ohm passive mini intercom speaker

  • HC40N-2-R32
  • HC
  • Product name: 1.5 inch small speaker driver unit
  • Rate power: 0.5 Watt
  • Max power: 1 Watt
  • Sensitivity: 93±3dB
  • Impedance: 8/16/32Ω Provide customized services
  • Frequency: Fo~~5KHZ
  • Resonance frequency: 820hz±20%
  • Distortion rate: ≤5%
  • Magnet size: Dia 12.5*2.0mm neodymium magnet
  • Size: Dia 40*10Hmm
Quantity:
Dia 40mm height 10mm 0.5w 32ohm passive mini intercom speaker
Attribute
Value
1.1 Rate power
0.5 W
1.2 Max power
1 W
1.3 Sensitivity
93±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
1.4 Impedance
32Ω±15%
1.5 Frequency
Fo~~5KHZ
1.6Resonance frequency
820hz±20%
1.7 Distortion rate
≤5%
1.8 Magnet size
Φ12.5*2.0mm
1.9 Weight
13g±8%
2.0 Size
Φ40*10Hmm
2.1voice coil & Material
Φ13.28mm PL+Cu
2.2 Cone
Paper cone
